Parts List for unframed laser harp:
Protoboard
Jumper Wire
Arduino Uno
Step motor
Resistor 220 ohms 1/4W
ULN2003
2N2222 TRANSISTOR
LDR Light Sensor
MIDI jack
5k TRIMPOT
Wine Cork Stopper
Small Mirror Piece
Green Laser Pointer
Green Laser Safety Goggles
White Gloves
Power Supply, 5V DC, regulated 1A minimum
Power Supply, 15V DC, regulated 5A minimum
Power Supply, 9V DC, regulated 1A minimum
Harp Laser Blog
Welcome to Harp Laser Blog! Here you will find all sorts of information about Laser Harps like the one Jean Michel Jarre plays live in concert including in his "Rendevous 2" song. Thanks for visiting!
domingo, 19 de fevereiro de 2012
quinta-feira, 16 de fevereiro de 2012
quarta-feira, 15 de fevereiro de 2012
segunda-feira, 13 de fevereiro de 2012
Fritzing drawing and Arduino Code v5.0

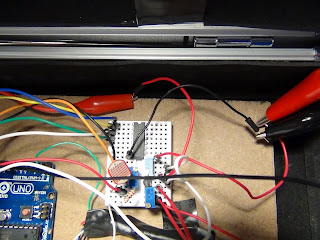

Here is what I have already:
Fritzing drawing:
Arduino Code (v5.0 updated):
// Ruete's Open Source Laser Harp v5.0
// Free for home use. Comercial use proibited.
// v5.0 updates:
// frame expanded width
// optmized settings for sensor
// optimized settings for laser brightness and blanking
// Circuito MIDI:
// * digital in 1 conectado ao MIDI jack pin 5 (DO MIDI JACK)
// * MIDI jack pin 2 conectado ao ground (DO ARDUINO)
// * MIDI jack pin 4 (DO MIDI JACK) conectado ao +5V (DO ARDUINO) por um resistor de 220-ohm
int buttonPresses = 0; // quantas vezes a nota foi tocada
int LaserState = LOW; // laser "off"
int sensor = 8 ; // valor do sensor calibrado
int delayligado = 5; //minimo 2 para aparecer direito o laser
int delaymexe = 3; //delay entre movimentos minimo 3
int delaydesligado = 0; // minimo 0
long previousMillis = 0; // guarda ultima vez que o laser foi atualizado
const int LaserPin = 7; // define pin do arduino para o laser
long timer = 100; // intervalo que o laser vai pisca em milisegundos
int val = 100;
// define os pins do motor no arduino
int motorPin1 = 8;
int motorPin2 = 9;
int motorPin3 = 10;
int motorPin4 = 11;
int note9 = 0x33;
int note8 = 0x32;
int note7 = 0x30;
int note6 = 0x2E;
int note5 = 0x2C;
int note4 = 0x2B;
int note3 = 0x29;
int note2 = 0x24;
int note1 = 0x24;
// setup ------------------------------------------------------------
void setup()
{
// do motor:
pinMode(8, OUTPUT);
pinMode(9, OUTPUT);
pinMode(10, OUTPUT);
pinMode(11, OUTPUT);
// do laser:
pinMode(LaserPin, OUTPUT);
// do led:
pinMode(13, OUTPUT);
// ativa frequencia MIDI (baud rate):
Serial.begin(31250);
}
void noteOn(int cmd, int pitch, int velocity)
{
Serial.write(cmd);
Serial.write(pitch);
Serial.write(velocity);
}
//-------------------------------------------------------------------------------------------
// inicio do loop ---------------------------------------------------------------------------
void loop()
{
// movimento horario ----------------------------------------------------------
digitalWrite(LaserPin, HIGH); // liga laser 1
delay(delayligado);
//**********************************************************************************************************************************
if ( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note1, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note1, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 1
delay(delaydesligado);
//-------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 2
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 3
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 2
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note2, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note2, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 2
delay(delaydesligado);
//-------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 4
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 5
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 3
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note3, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note3, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 3
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 6
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 7
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 4
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note4, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note4, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 4
delay(delaydesligado);
//-----------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 8
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 9
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 5
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note5, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note5, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 5
delay(delaydesligado);
//-------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 10
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 11
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 6
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note6, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note6, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 6
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 12
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 13
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 7
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note7, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note7, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 7
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 14
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 15
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 8
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note8, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note8, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 8
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 16
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 17
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 9
delay(delayligado);
//********************************************************************************************************************************** **
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note9, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note9, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 9
delay(delaydesligado);
//-----------------------------------------------------------------------------
// movimento anti-horario -----------------------------------------------------
//------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 16
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 15
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 8
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note8, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note8, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 8
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 14
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 13
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 7
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note7, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note7, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 7
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 13
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 12
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 6
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note6, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note6, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 6
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 11
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 10
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 5
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note5, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note5, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 5
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 9
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 8
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 4
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note4, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note4, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 4
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 7
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 6
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 3
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note3, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note3, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 3
delay(delaydesligado);
//-------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 5
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 4
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 2
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note2, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note2, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 2
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 3
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 2
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
}
// final do loop para mexer o motor e ligar/desligar laser (volta para o começo do loop)-----
//-------------------------------------------------------------------------------------------
Fritzing drawing:
Arduino Code (v5.0 updated):
// Ruete's Open Source Laser Harp v5.0
// Free for home use. Comercial use proibited.
// v5.0 updates:
// frame expanded width
// optmized settings for sensor
// optimized settings for laser brightness and blanking
// Circuito MIDI:
// * digital in 1 conectado ao MIDI jack pin 5 (DO MIDI JACK)
// * MIDI jack pin 2 conectado ao ground (DO ARDUINO)
// * MIDI jack pin 4 (DO MIDI JACK) conectado ao +5V (DO ARDUINO) por um resistor de 220-ohm
int buttonPresses = 0; // quantas vezes a nota foi tocada
int LaserState = LOW; // laser "off"
int sensor = 8 ; // valor do sensor calibrado
int delayligado = 5; //minimo 2 para aparecer direito o laser
int delaymexe = 3; //delay entre movimentos minimo 3
int delaydesligado = 0; // minimo 0
long previousMillis = 0; // guarda ultima vez que o laser foi atualizado
const int LaserPin = 7; // define pin do arduino para o laser
long timer = 100; // intervalo que o laser vai pisca em milisegundos
int val = 100;
// define os pins do motor no arduino
int motorPin1 = 8;
int motorPin2 = 9;
int motorPin3 = 10;
int motorPin4 = 11;
int note9 = 0x33;
int note8 = 0x32;
int note7 = 0x30;
int note6 = 0x2E;
int note5 = 0x2C;
int note4 = 0x2B;
int note3 = 0x29;
int note2 = 0x24;
int note1 = 0x24;
// setup ------------------------------------------------------------
void setup()
{
// do motor:
pinMode(8, OUTPUT);
pinMode(9, OUTPUT);
pinMode(10, OUTPUT);
pinMode(11, OUTPUT);
// do laser:
pinMode(LaserPin, OUTPUT);
// do led:
pinMode(13, OUTPUT);
// ativa frequencia MIDI (baud rate):
Serial.begin(31250);
}
void noteOn(int cmd, int pitch, int velocity)
{
Serial.write(cmd);
Serial.write(pitch);
Serial.write(velocity);
}
//-------------------------------------------------------------------------------------------
// inicio do loop ---------------------------------------------------------------------------
void loop()
{
// movimento horario ----------------------------------------------------------
digitalWrite(LaserPin, HIGH); // liga laser 1
delay(delayligado);
//**********************************************************************************************************************************
if ( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note1, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note1, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 1
delay(delaydesligado);
//-------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 2
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 3
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 2
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note2, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note2, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 2
delay(delaydesligado);
//-------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 4
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 5
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 3
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note3, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note3, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 3
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 6
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 7
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 4
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note4, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note4, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 4
delay(delaydesligado);
//-----------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 8
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 9
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 5
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note5, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note5, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 5
delay(delaydesligado);
//-------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 10
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 11
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 6
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note6, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note6, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 6
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 12
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 13
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 7
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note7, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note7, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 7
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 14
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 15
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 8
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note8, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note8, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 8
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 16
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 17
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 9
delay(delayligado);
//********************************************************************************************************************************** **
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note9, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note9, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 9
delay(delaydesligado);
//-----------------------------------------------------------------------------
// movimento anti-horario -----------------------------------------------------
//------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 16
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 15
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 8
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note8, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note8, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 8
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 14
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 13
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 7
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note7, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note7, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 7
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 13
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 12
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 6
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note6, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note6, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 6
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 11
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 10
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 5
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note5, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note5, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 5
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 9
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 8
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 4
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note4, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note4, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 4
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 7
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 6
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 3
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note3, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note3, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 3
delay(delaydesligado);
//-------------------------------------------------------------------
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 5
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, HIGH);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 4
digitalWrite(motorPin2, HIGH);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(LaserPin, HIGH); // liga laser 2
delay(delayligado);
//**********************************************************************************************************************************
if( (analogRead(0) >sensor ) && (buttonPresses == 0) ) //se o sensor esta ativado E ainda nao começou a tocar entao toca a nota++++++++++++
{
// faça A -----------------------------------------------------------------------------------------------------------
digitalWrite(13, HIGH); // acende o led
noteOn(0x90, note2, 0x7F); // toca a nota no: channel 1 = (0x90), nota = (note), volume = (0x7F)
buttonPresses++; // aumenta o valor do buttonPresses (para avisar que a nota ja comecou a tocar)
}
// --------------------------------------------------------------------------------------------------------------------
else if(analogRead(0) <sensor ) // e se o sensor esta desativado +++++++++++++++++++++++++++++++++++++++++++++++++++++++
{ // // faça B = silencia a nota
digitalWrite(13, LOW); // desliga o led
noteOn(0x90, note2, 0x00); // silencia a nota no: channel 1 (0x90), nota = (note), volume de silencio = (0x00)
buttonPresses = 0; // zera o "buttonPresses"
}
//**********************************************************************************************************************************
digitalWrite(LaserPin, LOW); // desliga laser 2
delay(delaydesligado);
//------------------------------------------------------------------
digitalWrite(motorPin1, HIGH); // comanda o motor para mexer para 3
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, LOW);
delay(delaymexe); // espera o motor
digitalWrite(motorPin1, LOW); // comanda o motor para mexer para 2
digitalWrite(motorPin2, LOW);
digitalWrite(motorPin3, LOW);
digitalWrite(motorPin4, HIGH);
delay(delaymexe); // espera o motor
}
// final do loop para mexer o motor e ligar/desligar laser (volta para o começo do loop)-----
//-------------------------------------------------------------------------------------------
sábado, 14 de janeiro de 2012
Here is a picture of my Laser Harp v1 (framed version)
It is a framed Laser Harp I developed using and arduino, a green laser, lots of passion and googling!
If you want to build a Framed Laser Harp you can google for Stephen Hobley and you will find plenty of info about that..
Now if you want to make a Frameless Laser Harp like the one Jean Michel Jarre 's used to play Rendezvous 2 Live in concert at his Europe Tour 2011., it is a lot more difficult...
I am currently working on this project and almost done with it.
Since technology has developed so much it is now possible to build your own homemade DIY Frameless Laser Harp.
I saw a couple of adds on the internet selling Frameless Laser Harps for US$1.200,00 and up (only the controller and sensor part). Then I would have to buy an ILDA green laser projector also. And then pay around 100% more for import taxes on top of all this.
That´s when I decided to give it a try at building it myself!
Turns out Laser Harp v2 (unframed) is almost completed.
Bookmark this website, and come back soon as I will post the complete schematics and programing here so you will be able to make yourself one too (without being a technical geek).
Enjoy!
Assinar:
Postagens (Atom)
